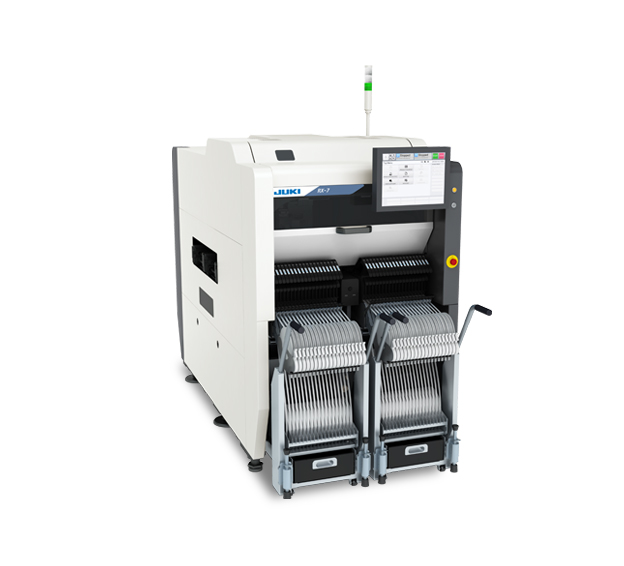

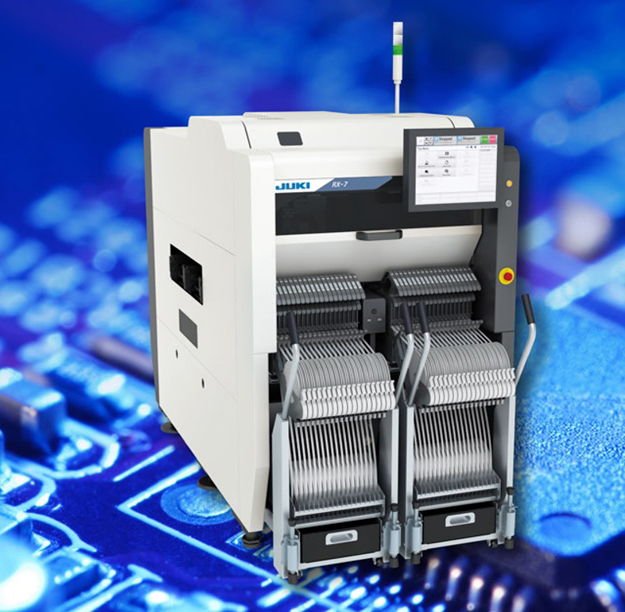

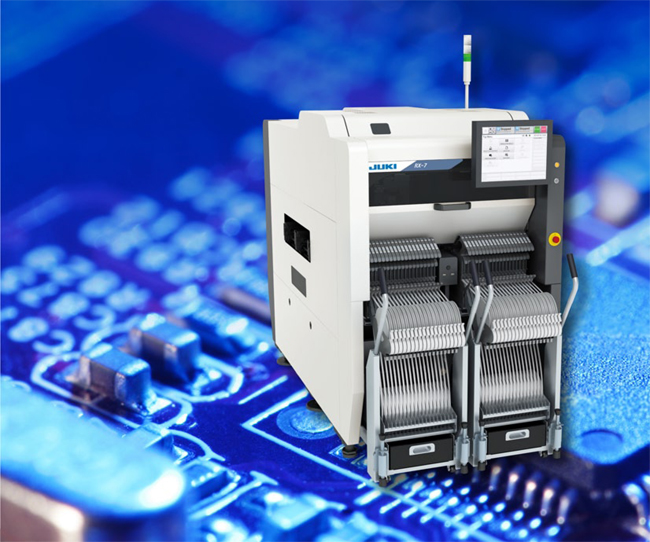

JUKI RX-7 Pick and Place Machine

JUKI RX-7 Pick and Place Machine

Specifications:

JUKI RX-7 Pick and Place Machine

Placement speed ( Optimum) Chip : 75,000CPH*1

Component size : 03015*2～25mm x 25mm

P16 nozzle head that realizes high-speed high-density placement of very small components

P8 nozzle head that realizes high-speed and high-accuracy placement of middle and small general-purpose components

Space-saving design with a width of 998 mm

This is applicable to the dual lane production.

An optimum production line can be configured for each production item through a combination of heads.

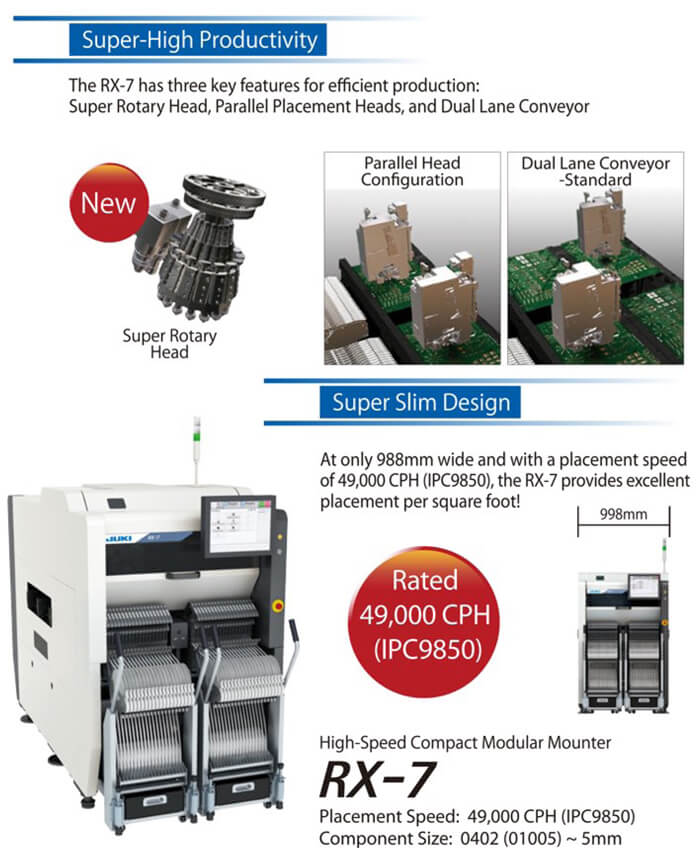

High productivity based on an original planet head and a structure of parallel two heads

This is applicable to small-size IC components ranging from 03015 chip*2 to 25 mm square to be placed.

*1 When using P16 nozzle head. *2 Please contact to us for detail.

High-Speed Compact modular mounter RX-7
		P16×P16 nozzle head	P16×P8 nozzle head	P8×P8 nozzle head
Board size	Single lane conveyer	50×50～510mm*1 x 450mm
	Dual lane conveyer	50×50～510mm*1 x 250mm
Component height		3mm	3mm,P16 nozzle head	10.5mm
			10.5mm,P8 nozzle head
Component size		03015*2～5mm x 5mm	03015*2～5mm x 5mm P16 nozzle head	0603～ 25mm x 25mm
			0603～25mm x 25mm P8 nozzle head
Placement speed (Optimum) chip	CHIP	75,000CPH	54,900 CPH	34,800 CPH
	IC	-	6,400 CPH*3	12,800 CPH
Placement accuracy	CHIP	±0.04mm(Cpk≧1)
	IC	-	±0.04mm
Component loading quantity		38 (76 in case of 8mm tape) *4
