Applicable Components: 0402(01005) ~ 33.5mm
Board size:50x50~610x590mm
Feeder inputs:max.160
placement capacity:52,000 CPH

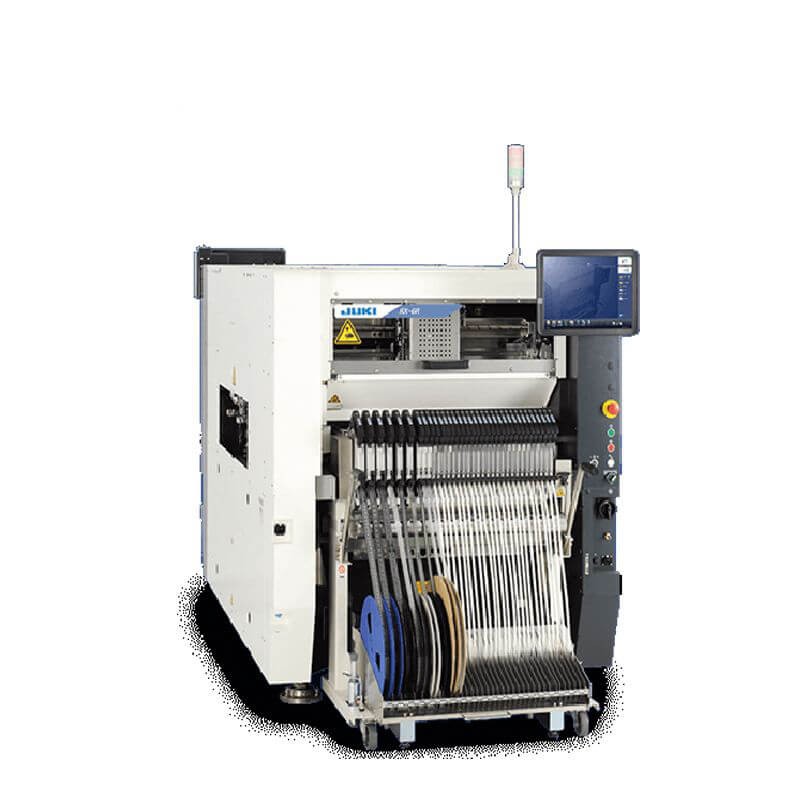

JUKI RX-6R 6B pick and place machine
Specifications:

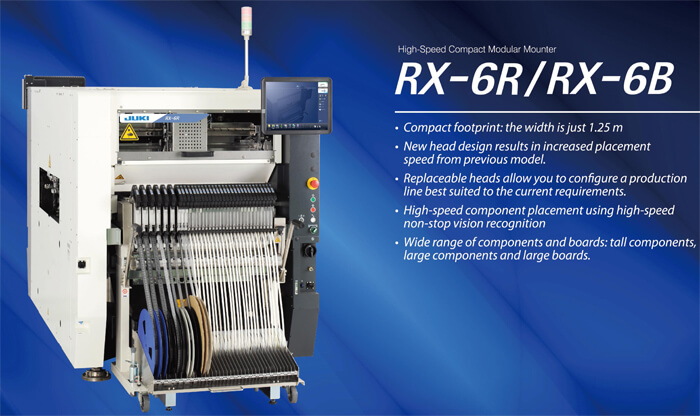

JUKI RX-6R 6B pick and place machine

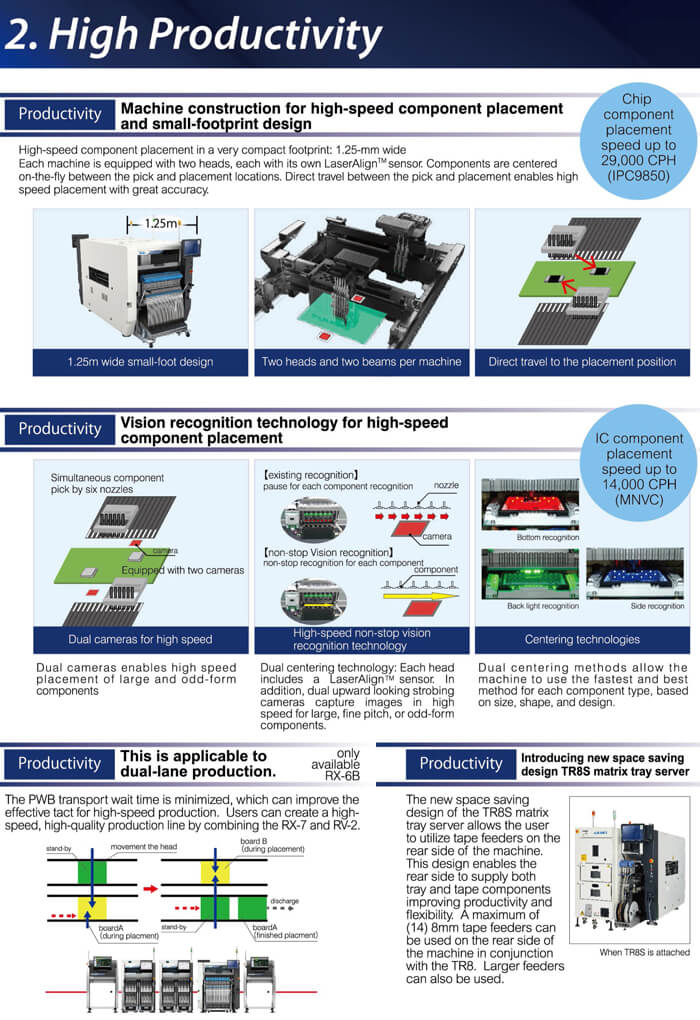

1. This is applicable to dual-lane production.*6
2. Compact footprint : the width is just 1.25m

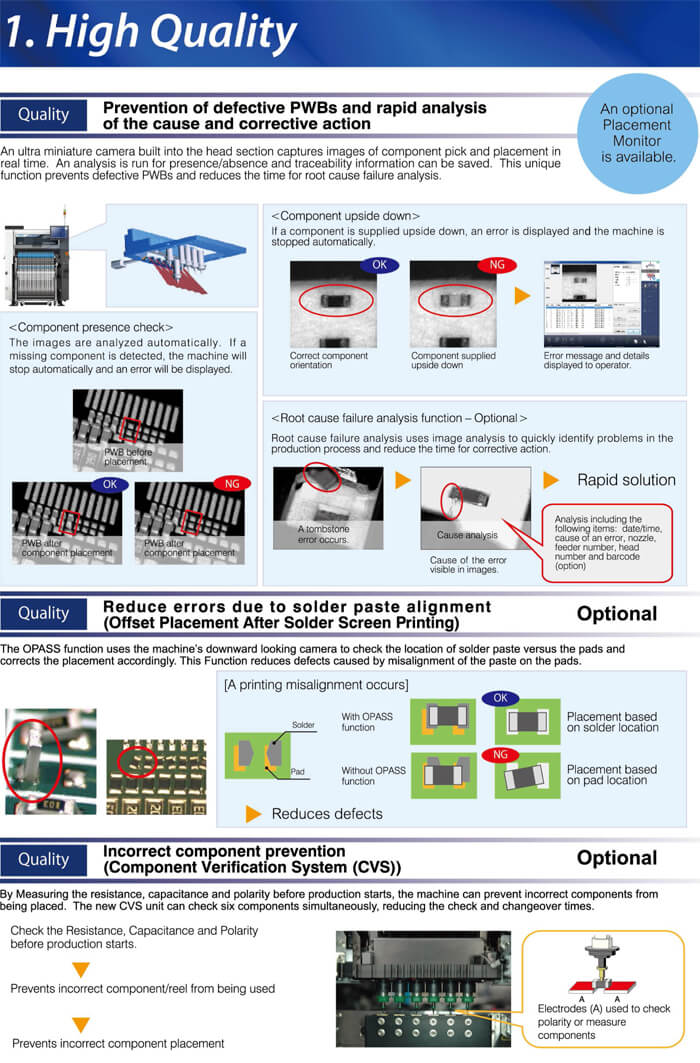

3. Equipped with standard Placement Monitor check function.*1
4. Replaceable head allow you to configure a production line best suited to the current repirments.*6

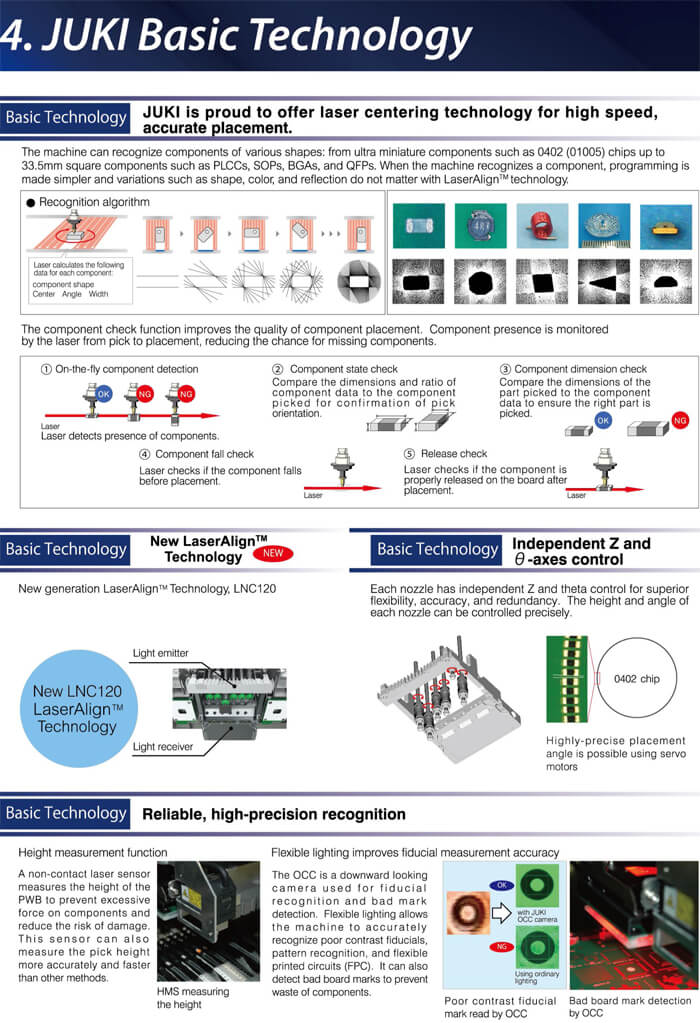

5. High-speed component placement using high-speed non-stop vision recognition.*3

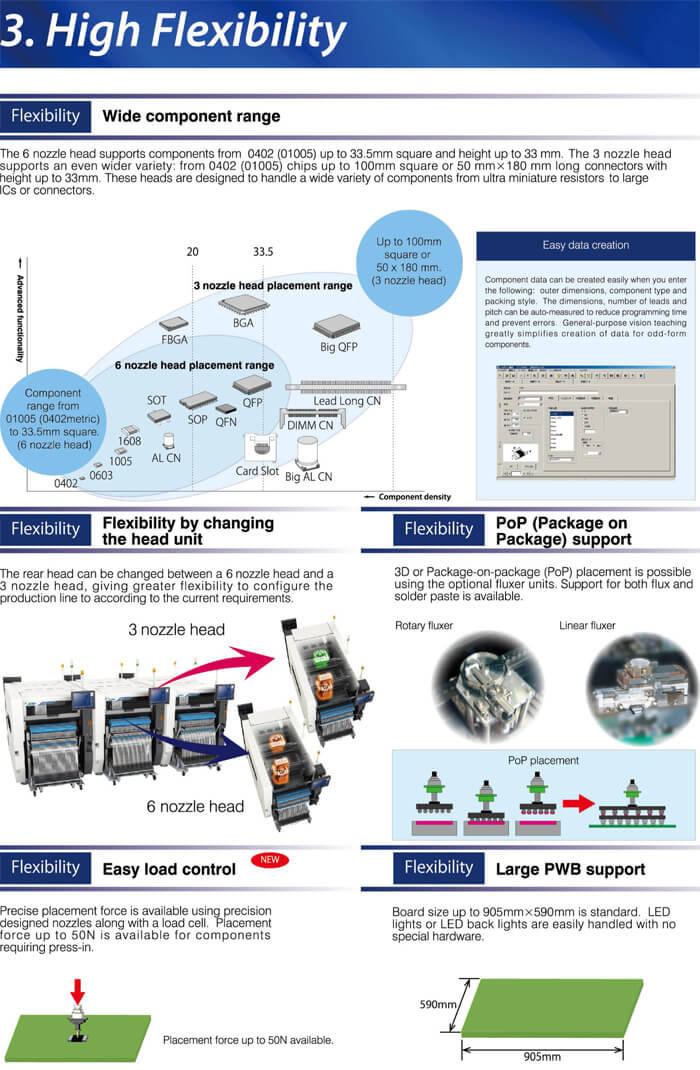

6. Wide range of components and boards: tall components, large components and large boards.
7. Brand new Matrix Tray Sever TR8S improves the component capability and productivity.

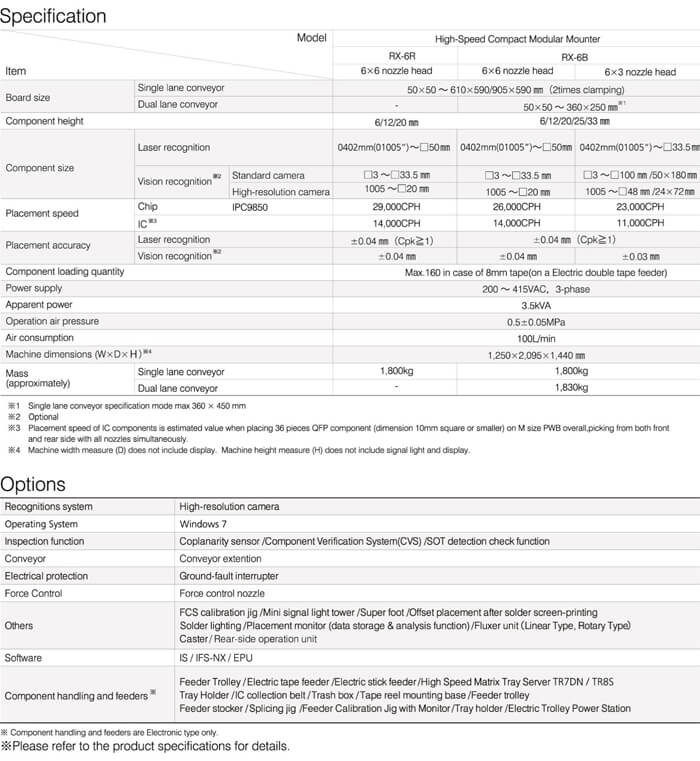

JUKI SMT Placement Machine RX-6R | |
Placement speed | Chip : 52,000CPH*2 |
Component size | 0402mm(01005 inch) ~ 50mm×50mm*4 |
Board size | Single lane conveyor: |
Head unit | 6×6nozzle head |
