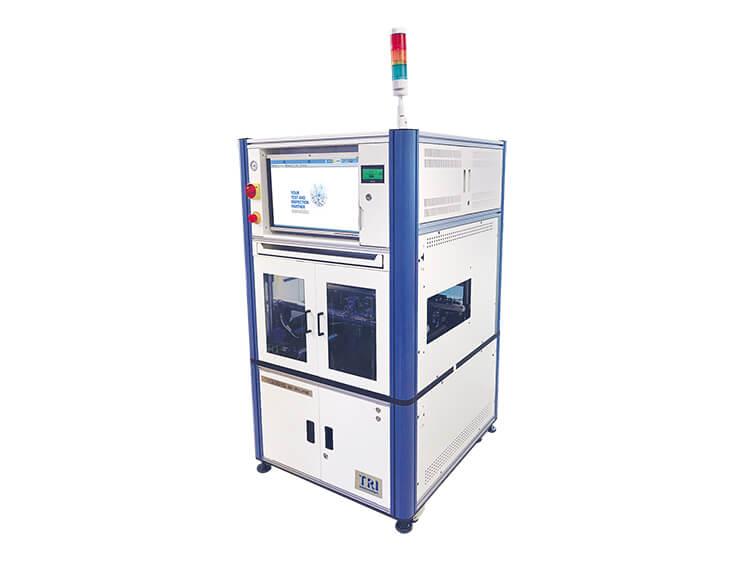

In-Circuit Tester TRI ICT TR5001 SII INLINE SERIES

max PCB: 500 x 360 mm
Weight: 670 kg
Dimension: 900 x 1080 x 1660 mm
Product description: In-Circuit Tester TRI ICT TR5001 SII INLINE SERIES, max PCB: 500 x 360 mm, Weight: 670 kg, Dimension: 900 x 1080 x 1660 mm
INQUIRY

In-Circuit Tester TRI ICT TR5001 SII INLINE SERIES

Product Specification

Next generation parallel inline ICT+FCT solution offers breakthrough performance Multi-Core Parallel testing with up to 4 independent cores for high throughput. SMEMA-compatible inline handler reduces operator workload and increases throughput, and durable Quick Disconnect Interface together with built-in auto-calibration and self-diagnostics ensure long-term testing reliability.

• New Generation Flexible Multi-Core Parallel Tester
• State-of-the-Art Serial Test Controller with up to 8 ports on any pin
• Limited access solution and functional test expansion using PXI modules
• Built-in Self Diagnostics and Auto-Calibration function
• High-Accuracy Measurement and Testing
• SMEMA compatible inline high fault coverage test solution
• Intuitive UI with flow-based easy program development

Tester Specifications
Analog/hybrid test points	TR5001Q(L) SII INLINE: 4096
	TR5001D(L) SII INLINE: 3328
	TR5001(L) SII INLINE: 3456
Operating System	Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type	Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement
	Component R/L/C measurement
Optional Components
Analog Hardware	TestJet vectorless open circuit detection
Analog Hardware	Arbitrary Waveform Generator
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	Serial Test Controller (STC) Programming
	DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
	DPS Programmable DUT Power supply :
	(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
	(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
	Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System	YMS 4.0
Board Handling
Min. PCB Size	70 x 70 mm
Max. PCB Size	TR5001(D/Q) SII INLINE:500 x 360 mm
Max. PCB Size	TR5001(D/Q)L SII INLINE: 510 x 510 mm
PCB Thickness	0.6 - 5 mm
Dimensions
WxDxH	TR5001(D/Q) SII INLINE: 900 x 1080 x 1660 mm
	TR5001(D/Q)L SII INLINE: 1000 x 1230 x1676 mm
	Note: not including signal tower,signal tower height: 390 mm
Weight	TR5001(D/Q) SII INLINE: 670 kg
Weight	TR5001(D/Q)L SII INLINE: 720 kg
