SMT Camera Module Cleaning Machine CMC

Cleaning method Two fluid cleansing
Cleaning plate specifications Custom
Equipment dimensions 880mm（L）×960mm（W）×1880mm
Net weight of machine 450KG
Product description: SMT Camera Module Cleaning Machine CMC, Cleaning method Two fluid cleansing, Cleaning plate specifications Custom, Equipment dimensions 880mm（L）×960mm（W）×1880mm, Net weight of machine 450KG
INQUIRY

SMT Camera Module Cleaning Machine CMC

Product Introduce:

Machine Introduction:

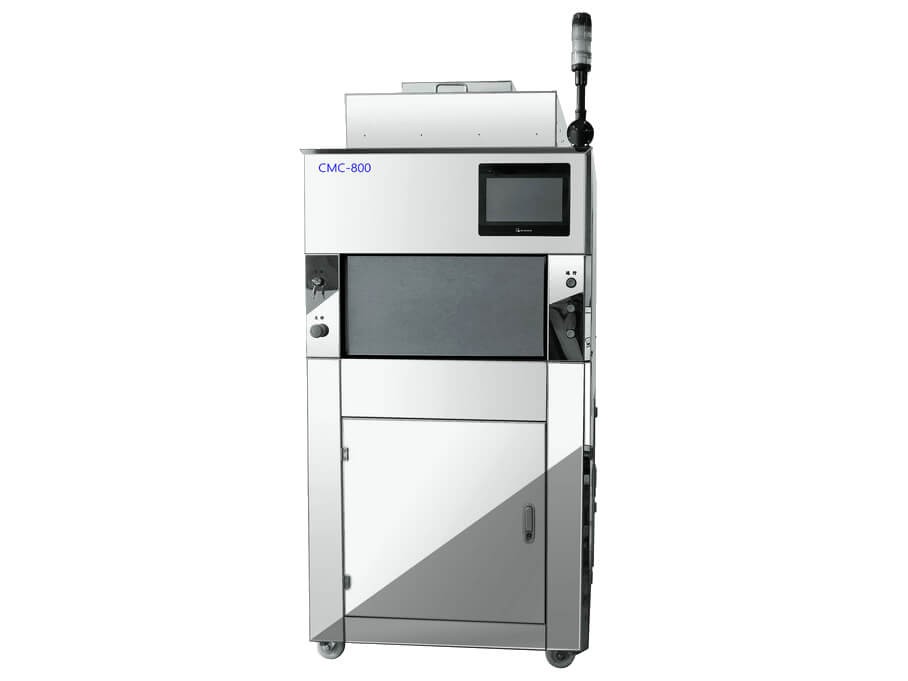

CMC-800 is a camera module professional cleaning machine for the camera products, such as wafer, CMOS, Holder and other surface dust cleaning.
Machine Features:
1.the camera class module surface dust, impurities for cleaning machines;
2.mirror stainless steel integration closed body, no pollution of the working environment, suitable for use of clean room requirements;
3.can replace the cleaning plate cleaning a variety of products, cleaning discs by product custom;
4.PLC automatic control, easy to operate;
5.transparent explosion-proof front door, safe operation, easy to observe;
6.the whole system instrument display, at any time to monitor the cleaning situation;
7.the use of two fluid cleaning, cleaning high precision, zero damage to the product, pure water consumption is minimal;
8.rotating spray bar, to avoid secondary pollution products;
9.equipped with static elimination device, cavity wall heating device, auxiliary cleaning to achieve the best results;
10.equipped with 2 air filtration system, compressed air in line with ISO8573, 1 standard;
11.body compact, small footprint;
12.full use of ultra-pure water cleaning, RoHS-compliant.

Machine Specifications:

Equipment dimensions	880mm（L）×960mm（W）×1880mm（H）
Cleaning plate specifications	Custom (cleaning disc diameter <ø550mm)
Cleaning method	Two fluid cleansing
Dry way	High-speed centrifugal drying
power supply	AC380V 50HZ
Total power	7KW
power consumption	When cleaning: 3.5kw / h	Standby: 1kw / h
Drive horsepower	3HP
Environmental filtering	0.3μm；99.999%
Air filter	1μm×1；0.01μm×1
Centrifugal speed	100-1500RPM
Pure water consumption	0-7L/Min
Gas consumption	10-30m³/H
Cleaning pressure	Liquid pressure: 3-8Kgf / cm² Air pressure: 0.2-0.5Mpa
DI water supply	Flow:> 7LPM Resistivity:> 17MΩ
Air supply	Pressure: 0.45-0.7Mpa; flow:> 30m ³ / H (cleanliness meet the cleaning requirements)
Pure water inlet diameter	Ø12mm hose or PT1 / 2 "internal thread
Air inlet diameter	Ø12mm trachea
Drain outlet diameter	PT 1 "internal thread
Outlet diameter	4 "× 2 (need to strengthen the ventilation, wind speed greater than 3m / sec)
Net weight of machine	450KG
