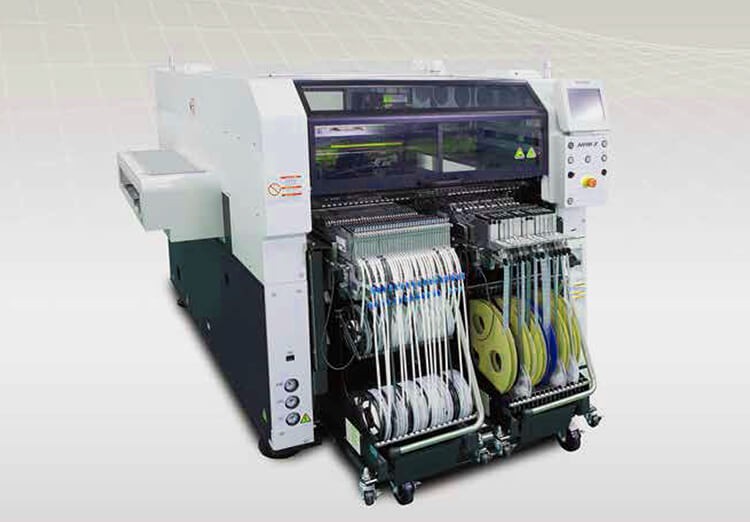

Panasonic NPM WX WXS Pick and Place Machine

Max PCB:L 750 × W 610mm
Placing Speed: 86000CPH
Max Feeder: 136 reels
Weight: 2740kg
Product description: Panasonic NPM WX WXS Pick and Place Machine, Max PCB:L 750 × W 610mm, Placing Speed: 86000CPH, Max Feeder: 136 reels, Weight: 2740kg, W1410×D2570×H1444mm
INQUIRY

Panasonic NPM WX WXS Pick and Place Machine

Specifications:

Panasonic's next generation of mounting production (X series) concept
“Smart manufacturing"
More line throughput, better quality and lower cost with fully automated mounting system floor
Stable operation based on the autonomic function - Autonomous line control
APC system and automatic recovery option
Labor-saving, improved utilization - Concentrated control
Floor management system and remote operation option
Reduced work variations - Navigation/automated items
Feeder setup navigation, component supply navigation and automated items

Panasonic NPM-WX WXS Pick and Place Machine

Model ID		NPM-WX	NPM-WXS
Model No.		NM-EJM9D	NM-EJM2E
PCB dimensions (mm)	Single-lane mode	Batch mounting : L 50 × W 50 ~ L 750 × W 610 2-position mounting : L 50 × W 50 ~ L 350 × W 610
	Dual-lane mode	Dual transfer (Batch) : L 50 × W 50 ~ L 750 × W 300 Dual transfer (2-position) : L50 × W 50 ~ L 350 × W 300
		Single transfer (Batch) : L 50 × W 50 ~ L 750 × W 590 Single transfer (2-position) : L50 × W 50 ~ L 350 × W 590
Electric source		3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA	3-phase AC 200, 220, 380, 400, 420, 480 V 2.1 kVA
Pneumatic source *1		Min.0.5 MPa、200 L /min (A.N.R.)
Dimensions (mm)		W 1 410 2 × D 2 570 3 × H 1 444 *4
Mass		2 740 kg (Only for main body : This differs depending on the option configuration.)	2 660kg (Only for main body : This differs depending on the option configuration.)
Placement head		1 head on each side (front, rear)	1 head (rear camera is optional)
Component supply	Taping	Tape : 4 ~ 56 / 72 / 88 / 104 mm
		Front rear 17-slot feeder cart specifications : Max. 136 product types (4, 8mm tape)
	Stick	Front rear 17-slot feeder cart specifications : Max. 32 product types (single stick feeder)	Front rear 17-slot feeder cart specifications : Max. 16 product types *5 (single stick feeder)
	Tray	One side tray specifications : Max.24, Front-rear tray specifications : Max.48

Placement head	Lightweight 16-nozzle head V2 (Per head)	Lightweight 8-nozzle head (Per head)	4-nozzle head (Per head)	3-nozzle head V2 (Per head)
Max. speed	43 000 cph (0.084 s / chip)	23 000 cph (0.155 s / chip)	8 400 cph (0.429 s / chip) 7 800 cph (0.462 s / QFP feeder) 7 100 cph (0.507 s / QFP tray) *8	9 400 cph (0.383 s / chip) 7 300 cph (0.493 s / QFP feeder) 6 350 cph (0.567 s / QFP tray) *9
Placement accuracy (Cpk≧1)	±25 μm/ chip	±25 μm/ chip ±40 μm/QFP □12 mm Under ±25 μm/QFP □12 mm ~ □32 mm	±20 μm/ QFP	±20 μm/ QFP
Component dimensions (mm)	0201 chip 67 / 03015 chip 6 0402 chip 6 ~ L 6 × W 6 × T 3	0402 chip *6 ~ L 45 × W 45 × T 12 or L 100 × W 40 × T 12	0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40	0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40

*1 : Only for main body
*2 : 2 010 mm in width if extension conveyors (300 mm) are placed on both sides.
*3 : Dimension D including feeder cart
*4 : Excluding the monitor, signal tower and ceiling fan cover.
*5 : Stick feeders cannot be used on the rear feeder cart of NPM-WXS.
*6 : 0201/03015/0402 component requires a specific nozzle/tape feeder.
*7 : 0201 component placement is optional. (Under conditions specified by Panasonic)
*8 : For any QFP □20 mm or less in size
*9 : For any QFP □28 mm or less in size
* Placement tact time and accuracy values may differ slightly depending on conditions.
* Please refer to the specification booklet for details.
