  • JUKI Visual Inspection Machine AOI/SPI RV-1

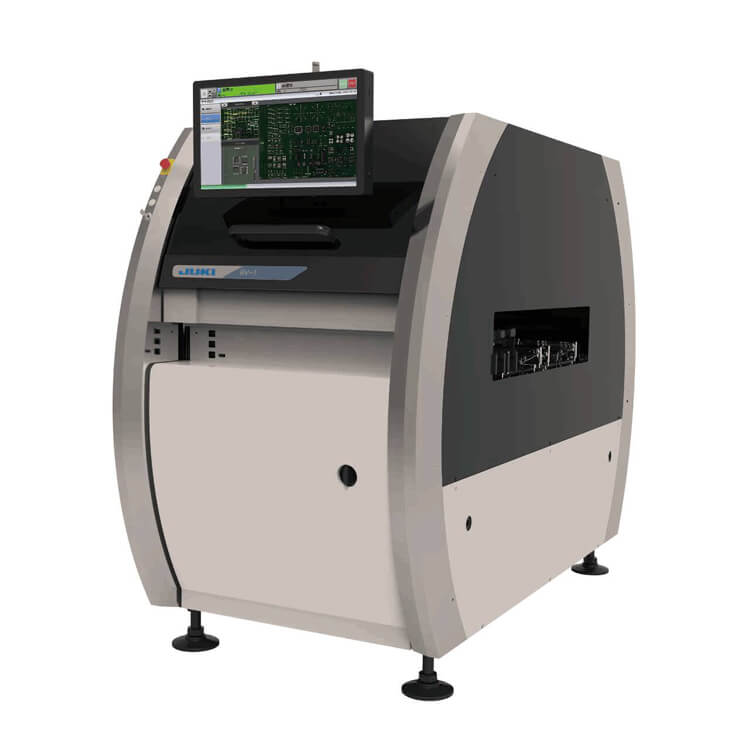

JUKI Visual Inspection Machine AOI/SPI RV-1

JUKI Visual Inspection Machine AOI/SPI RV-1

  • Frame size:750mm x 750mm
  • Board size:610mm x 510mm
  • Dimension:​W1,310mm x D1,470mm x H1,530mm
  • weight:1,000kg
  • Product description: JUKI Visual Inspection Machine AOI/SPI RV-1,Frame size:750mm x 750mm,Board size:610mm x 510mm,Dimension:​W1,310mm x D1,470mm x H1,530mm,weight:1,000kg

JUKI Visual Inspection Machine AOI/SPI RV-1

Product Specifications:

Clear Vision Capturing System
Worlds top-class high performance
Inspection speed = 0.14 sec/ frame
■   Easy programming
■   CCC ( Central Confirmation Control) *
■   SPC ( Statistical Process Control) *
■   Supports 3D inspection *

Model name


PWB size

50mmx50mm - 510mmx300mm ( Dual lane )
50mmx50mm - 510mmx590mm ( Single lane )


0402/0603 ( metric ), Cylindrical chip, tantalum capacitor, transistor, SOP/QFP, etc.

Inspection speed

15μm ( Standard resloution ),10μm ( High resolution)


Omission, offset, polarity, reversed, no-solder,bridge, amount of solder, foreign material,etc.

Power supply

AC 3-ph 200-230V 2.0kVA / 0.49MPa 10Nl/min






SMT AOI machine, Online AOI Machine, Online SMT AOI Machine, Automated Optical Inspection Machine, PCB AOI Machine, SMT PCB AOI Machine,SMT SPI machine, Online SPI machine, Online SMT SPI machine, PCB SPI machine, BGA rework station.

We provide full SMT assembly line solutions, including SMT Feeder, SMT Nozzle, SMT Control Card, SMT Motor, SMT Laser | Sensor, SMT Feeder Storage Cart, SMT Servo driver, SMT Solenoid Valve, SMT Filter, SMT Feeder parts, Chip mounter Parts, SMT Equipment, SMT Spare parts, SMT Siplace parts, any kind through hole Insertion equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
