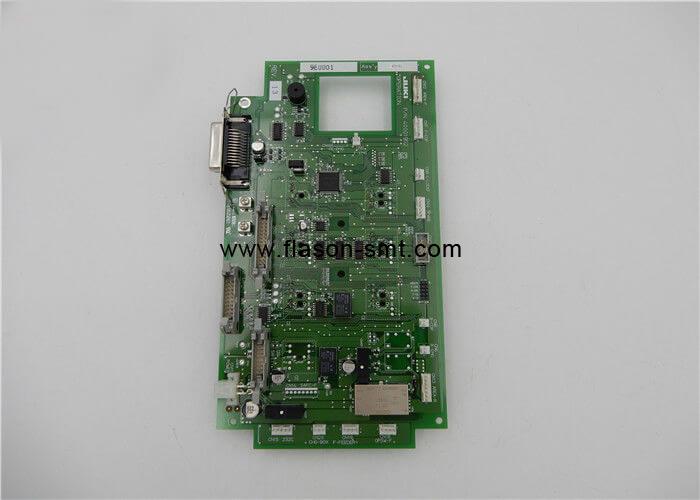

JUKI KE2050 2060 2070 2080 OPERATION PWB ASM 40001953

JUKI KE2050 2060 2070 2080 OPERATION PWB ASM 40001953

Specifications:

【RX-7】SYSTEM DIAGRAM (4)

1 EZ1-969-295-15 HARNESS (BOX-TROLLEY IF)

2 401-53439 CART USB CABLE ASM USB

3 EZ1-969-296-12 HARNESS (BOX-TROLLEY POW)

4 401-53439 CART USB CABLE ASM USB

5 EZ1-969-384-12 HARNESS (S/I JP)

6 EZ1-771-841-11 SWITCH POWER (D2D-2000)

7 EZ1-492-199-22 SAFETY SW ASSY

8 EZ1-492-199-32 SAFETY SW ASSY

9 EZ1-969-294-12 HARNESS (PRESS-SW)

10 EZ1-798-472-11 SWITCH PRESSURE (ISE30A-C6H)

11 EZ1-798-473-11 SWITCH PRESSURE (ZSE30A-C6H)

12 EZ1-520-538-12 METER HOUR (H7ET-NFV-300)

13 401-56753 FD-FLOAT(R) SENS CABLE2 ASM FD-FLOAT(R)

14 401-56752 FD-FLOAT(L) SENS CABLE2 ASM FD-FLOAT(L)

15 401-58790 FD-FLOAT(R)SENS CABLE2-2 ASM FD-FLOAT(R)

16 401-58787 SENSOR ASSY A (FEEDER FLOAT JA

17 401-58788 SENSOR ASSY B (FEEDER FLOAT JA

18 401-58789 FD-FLOAT(L)SENS CABLE2-2 ASM FD-FLOAT(L

19 EZ1-895-353-11 MOTHER BOARD ATX

20 401-54480 CVS COMM CABLE ASM 1(R) CVS COMM

21 401-54481 CVS COMM CABLE ASM 1(L) CVS COMM

22 401-54482 CVS COMM CABLE ASM 2(R) CVS COMM

23 401-54483 CVS COMM CABLE ASM 2(L) CVS COMM

24 400-95117 CVS PCB ASM CVS

25 401-54485 CVS POWER CABLE ASM 2 CVS

26 401-54486 CVS PROBE CABLE ASM CVS PROBE

27 401-54484 CVS POWER CABLE ASM 1 CVS POWER

28 EZA-194-422-7B TROLLEY CONTACT(M)B MOUNT

29 EZA-194-422-6B TROLLEY CONTACT(M)A MOUNT

30 EZA-194-422-9B TROLLEY CONTACT(T)B MOUNT

31 EZA-194-422-8B TROLLEY CONTACT(T)A MOUNT

32 401-42763 POWER CABLE ASM 2

33 401-42757 POWER CABLE ASM

34 401-42758 TROLLEY-IF CABLE ASM

35 EZ1-845-148-11 MEMORY USB USB

36 401-42756 TROLLEY-CUTTER CABLE ASM

37 401-42764 ELEC BANK PCB ASM

38 401-43435 E BANK FG CABLE ASM

39 401-42759 EF IF CBL 1-5 ASM

40 401-42760 EF IF CBL 6-10 ASM

41 401-42761 EF IF CBL 11-15 ASM

42 401-42762 EF IF CBL 16-20 ASM

43 401-56542 FRAME GRABBER (APX-3302)

44 401-56561 HARNESS(TRG-FG_CN6)

45 401-33146 CAMERALINK CABLE SS 3M

46 401-56552 HARNESS(SDIO_CN100-SIDO1)

47 401-56555 HARNESS(MC3_CN11-SDIO2)

48 401-56557 HARNESS(IO2-FCTR)

49 401-56558 HARNESS(IO2-FCTL)

50 401-56564 HARNESS(BOX7-FCPOW)

51 401-56553 HARNESS(SDIO1-FC_CN1)

52 401-56573 HARNESS(FCL_CN2-FCR_CN1)

53 401-56560 HARNESS(FC_CN5-TRG)

54 401-56554 HARNESS(SDIO2-FC_CN2)

55 401-56559 HARNESS(FCT-FC_CN4)

56 401-56565 HARNESS(FCPOW-FC_CN8)

57 401-55050 FC-LED CONT PCB ASM FC-LED CONT

58 401-56556 HARNESS(FC_CN3-FC_LED)

59 401-56562 HARNESS(FC_CN6-NC_DET)

60 401-56563 HARNESS(FC_CN7-NC)

61 401-56606 PARTS CAMERA

62 401-56613 SENSOR ASSY (NC DET_F1)

63 401-56628 SENSOR ASSY (NC DET_F2)

64 401-56614 SOLENOID VALVE (SY3120) ASSY

65 401-56625 HARNESS(DUST BOX)
