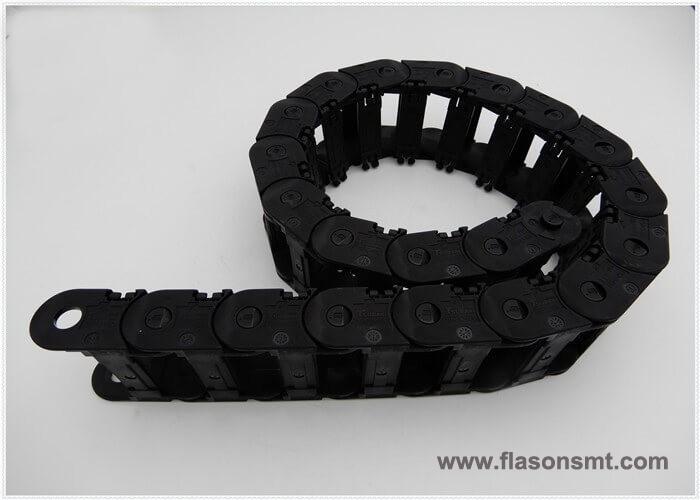

JUKI FX-1 FX-2 X CABLE BEAR L131E321000 TKP0450 58B R95

JUKI FX-1 FX-2 X CABLE BEAR L131E321000 TKP0450 58B R95

Specifications:

JUKI FX-1 FX-2 X CABLE BEAR L131E321000 TKP0450 58B R95

RX-7R】Pipe diagram

1 EZ1-492-203-11 VACUUM PUMP ASSY

2 PJ-3041254-01 ELBOW UNION 12

3 EZ4-454-742-01 SILENCER (ANA1-03)

4 EZ4-455-483-01 ELBOW (3/8) STREET

5 EZ1-492-242-13 SOLENOID ASSY (AIR SUPPLY)

6 EZ2-672-089-31 PLUG (KQ2P-08) BLANKING

7 EZ4-436-830-11 SILENCER (AN15-02)

8 EZ4-447-063-31 UNION (KQ2L06-02AS) ELBOW

9 EZ4-447-186-11 WYE (KQ2U06-00A) UNION

10 EZ4-447-247-21 STRAIGHT (KQ2H08-00A)

11 EZ4-447-247-41 STRAIGHT (KQ2H12-00A)

12 EZ4-703-619-01 SOCKET

13 EZ4-705-238-11 MANIFOLD (KM11-08-12-10)

14 PJ-3010600-03 REDUCER

15 PJ-3040405-05 ELBOW

16 PJ-3041252-02 ELBOW UNION

17 401-29071 AIR(P) SENSOR CABLE ASM ｴｱ(P)

18 401-29080 AIR(N) SENSOR CABLE ASM ｴｱ(N)

19 PJ-0205000-02 PLUG

20 PJ-3010605-03 HALF UNION

21 EZ4-271-381-01 CYLINDER (SSD-X-20-10) AIR

22 401-58121 AIR COMBINATION (AC30D-02DE-B)

23 PJ-0425200-02 ELBOW

24 EZ4-703-607-02 COUPLER HIGH (20PM)

25 EZ1-492-357-11 ELECTROMAGNETIC ASSY

26 PJ-3050600-04 TEE

27 PX-0505010-00 SILENCER

28 EZ4-446-715-51 REJUICER (KQ2R08-12A)

29 PJ-3030800-02 STRAIGHT

30 EZ4-442-207-01 JOINT ELBOW (KQ2K06-M5N)

31 EZ4-474-883-01 JOINT ELBOW (KQ2K08-01AS)

32 EZ4-453-569-01 PLUG (CYP025-08B29449)

33 EZ4-454-743-01 CONTROLLER (AS2201F-01-06SA)

34 PC-0126010-00 SPEED CONTROLLER

35 PJ-3040651-01 ELBOW UNION 6XPT1/8

36 EZ4-454-729-01 CYLINDER(CXSM32-100) DUAL ROD

37 EZ4-457-358-01 VALVE (MVP63-J) MECHANICAL

38 PX-0551040-00 SILENCER (PT1/8)

39 PJ-3040851-01 ELBOW UNION

40 402-07757 VALVE_ASM

41 400-94346 CHECK_VALVE

42 EZ2-672-089-31 PLUG (KQ2P-08) BLANKING

43 EZ4-447-186-11 WYE (KQ2U06-00A) UNION

44 PJ-3050600-04 TEE

C3

【COMMON】Head pipe diagram

1 EZ1-492-166-12 SOLENOID VALVE ASSY (BLW)

2 EZ4-454-752-01 MECHANICAL VALVE

3 EZ4-458-768-01 DECOMPRESSION VALVE (MR001)

4 EZ4-702-269-01 NIPPLE (M-5H-4), HOSE

5 EZ4-702-324-01 ELBO (M-5HL-4), HOSE
