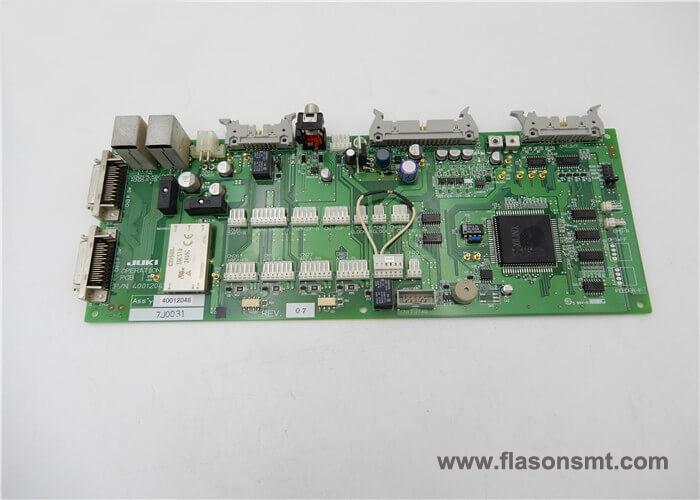

JUKI FX-1 FX-1R FX-2 Operation PWB BOARD ASM 40012048

JUKI FX-1 FX-1R FX-2 Operation PWB BOARD ASM 40012048

Specifications:

JUKI FX-1 FX-1R FX-2 Operation PWB BOARD ASM 40012048

401-87754 NOZZLE GEAR (A)

401-87756 NOZZLE GEAR (C)

401-87758 NOZZLE GEAR (E)

401-87760 NOZZLE GEAR (G)

61 EZ4-454-043-01 NZ SHAFT HOLDER

A16

【RX-7】P8 Head assy - 1

1 401-55886 LEVER_CAMFOLLOWER

2 401-55890 RETAINER(3)_BEARING

3 401-55894 HOLDER_NUT

4 401-55908 STOPPRE_UPPER

5 401-56145 HOLDER(H2)_BEARING

6 401-56153 HOLDER(H1)_BEARING

7 401-56165 STOPPRE_UNDER

8 401-56166 SHAFT_LINEAR

9 401-56419 ROLLED_BALL SCREW(WHF0612)

10 401-56447 CAM FOLLOWER(CFS2.5)

11 401-56456 SMALL HEAD CAP SCREW(M3X8)_HEX SOCKET

12 401-56459 LOW HEAD CAP SCREW(M3X6)_HEX SOCKET

13 EZ7-683-481-04 BOLT HEXAGON SOCKET 2.5X4 6

14 EZ7-683-404-04 BOLT HEXAGON SOCKET 3X8 6

15 EZ2-023-130-11 RING SHAFT C TYPE RETAINING

16 EZ3-703-358-52 PIN PARALLEL (DIA. 2X6)

17 EZ4-453-948-01 COLLAR H AXIS H

18 EZ4-454-044-01 COUPLING (SFC-005SA2-5B-5B)

19 EZ4-454-047-01 BEARING (MR105)

20 EZ4-454-048-01 LINEAR BUSH

21 EZ4-454-051-01 BEARING (AC6-16DF)

22 EZ4-454-725-01 SNAP RING (12)

23 401-55272 SLIT (OS-EX10-12)

24 401-56401 CAMERA CONECTA RETAINER

25 401-56402 CAMERA CONECTA RETAINER BASE

26 401-56457 LOW HEAD SCREW(M1.4X3)_PRECISION INST

27 401-56459 LOW HEAD CAP SCREW(M3X6)_HEX SOCKET

28 401-56506 BOLT HEXAGON SOCKET M2.5X5 WASHER ASSY

29 401-56507 HEAD CAMERA BASE (P8)

30 401-56508 HEAD CAMERA HOLDER BLOCK (P8)

31 401-56509 SHAFT HOLDER TP (P8)

32 401-56511 SHAFT HOLDER BTM (P8)

33 401-56512 LINER SHAFT (P8)

34 401-56513 AIR CYLINDER (CUJB10-15D)

35 401-56514 URETHANE WASHER (URWH8-3-2)

36 401-56515 RUBBER WASHER (WRBNA10-6-3)

37 401-56516 HEAD CAMERA SENSOR DOG (P8)

38 401-56517 SHOCK ABSORBER (RJ0604)

39 401-56519 FLOATING JOINT ROD (P8)

40 401-56521 FLOATING JOINT PIN (P8)

41 401-56522 FLOATING JOINT NUT (P8)

42 401-56523 HEAD CYLINDER NUT PLATE (P8)
