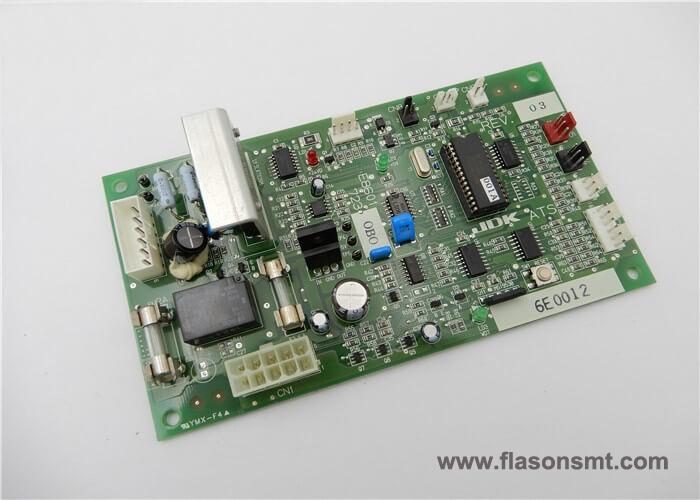

JUKI DTS TR1 Main Board E86017230B0

JUKI DTS TR1 Main Board E86017230B0

Specifications:

【COMMON】Head assy - 3

1 EZ1-492-165-13 SENSOR ASSY (NOZZLE SHAFT)

2 EZ1-492-166-12 SOLENOID VALVE ASSY (BLW)

3 EZ1-492-202-12 BATTERY ASSY

4 EZ1-895-367-12 BOARD BACKUP MONITORING

5 EZ4-454-723-01 LOW HEAD SCREW (M3X8)

6 EZ4-458-314-01 BATTERY CLIP

7 EZ4-458-495-02 COVER, WIRING

8 EZ7-627-551-18 SCREW,PRECISION +P 1.4X2

9 EZ7-683-406-04 BOLT,HEXAGON SOCKET 3X12 6

10 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6

11 EZ7-683-480-24 BOLT, HEXAGON SOCKET 2X5 6

12 EZ7-683-405-04 BOLT,HEXAGON SOCKET 3X10 6

13 EZ1-845-163-12 UNIT CAMERA MOVE (QQJ-2216)

14 402-07918 MOVABLE_CAMERA_UNIT_PROTECT

15 EZ4-453-950-01 PLATE, HEAD BASE

16 EZ4-453-951-01 PLATE, BOTTOM

17 EZ4-453-952-01 PLATE (1), SIDE

18 EZ4-453-953-01 PLATE (2), SIDE

19 EZ4-453-994-01 BLOCK, CLAMP

20 EZ4-453-997-01 HEAD FIXING BLOCK

21 EZ4-454-074-01 MINIATURE Y PACKING MYA-8

22 EZ4-457-781-01 STOPPER PIN

23 EZ4-458-768-01 DECOMPRESSION VALVE (MR001)

24 EZ4-701-529-01 TIE MOUNT (MB1)

25 EZ4-702-269-01 NIPPLE (M-5H-4), HOSE

26 EZ4-702-324-01 ELBO (M-5HL-4), HOSE

27 EZ7-682-247-04 SCREW +K 3X6 +K 3X6 2

28 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6

29 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6

30 EZ4-454-032-01 SPACER, GEAR

31 EZ4-472-629-01 SHAFT, REINFORCE

EZ4-465-277-01 HEAD CLAMP BLOCK SHIM (T0.1)

EZ4-465-277-11 HEAD CLAMP BLOCK SHIM (T0.2)

EZ4-465-277-21 HEAD CLAMP BLOCK SHIM (T0.5)

33 EZ3-703-360-51 PIN, PARALLEL (DIA. 3X8)

A13

【COMMON】Head assy - 4

1 EZ1-843-626-11 CONNECTOR (DL2-96R)

2 401-63295 USB MEMORY (SP008GBUF3J06V1D) USB

3 EZ7-682-247-04 SCREW +K 3X6 +K 3X6 2

4 EZ2-023-770-01 PLUG (M-5P)

5 EZ3-703-360-03 PIN PARALLEL (DIA. 3X10)

6 EZ4-454-041-03 BRACKET, CONNECTOR

7 EZ4-454-078-01 BOLT (SET-M3X6-NI)

8 EZ4-457-931-01 TAPE (80) FIXED
