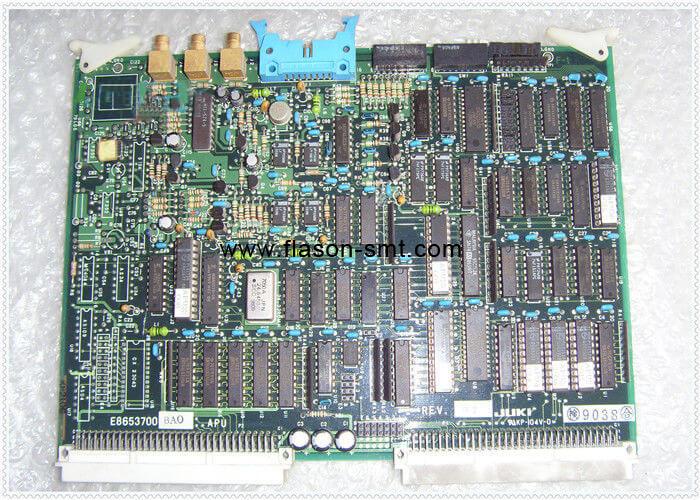

JUKI Apu Circuit Board E8653700BA0

JUKI Apu Circuit Board E8653700BA0

Specifications:

【RX-7】SYSTEM DIAGRAM (2)

1 EZ1-492-146-11 AMPLIFIER SERVO

2 EZ1-492-145-11 AMPLIFIER SERVO(MR-J4W2-22B-MK019)

3 EZ1-969-127-22 HARNESS (YM YE ETC-YM1 YS ETC)

4 EZ1-969-127-12 HARNESS (YM YE ETC-YM1 YS ETC)

5 EZ1-969-128-13 HARNESS (XS1-XS2)

6 EZ1-855-265-11 MOTOR SERVO (HG-KR23)

7 EZ1-492-231-13 MOTOR ASSY (Y)

8 EZ1-492-236-14 SCALE ASSY (Y)

9 EZ1-492-231-23 MOTOR ASSY (Y)

10 EZ1-492-236-24 SCALE ASSY (Y)

11 EZ1-492-237-13 SCALE ASSY (X)

12 EZ1-969-128-23 HARNESS (XS1-XS2)

13 EZ1-492-237-23 SCALE ASSY (X)

14 EZ1-492-148-11 AMPLIFIER SERVO

15 EZ1-969-122-13 HARNESS (ZM1-ZM2)

16 EZ1-969-127-22 HARNESS (YM YE ETC-YM1 YS ETC)

17 EZ1-492-235-15 MOTOR ASSY (Z)

18 EZ1-895-367-21 BOARD BACKUP MONITORING

19 401-58057 HARNESS(BAT-BACKUP MONITOR 2)

20 EZ1-492-202-12 BATTERY ASSY

21 EZ1-969-134-16 HARNESS (HEAD ETC-H1M H1E ETC)

22 EZ1-969-133-12 HARNESS (HIO1 2-VDB1 2 3 4)

23 EZ1-492-149-11 DRIVER PULSE MOTOR

24 EZ1-492-200-11 FAN ASSY (Y)

25 EZ1-969-131-23 HARNESS (HIO2-HIO3 ZBRK ETC)

26 EZ1-969-136-12 HARNESS (HDET-DET SEN)

27 EZ1-798-475-11 SWITCH (AV630564)

28 EZ1-492-245-11 UNIT CAMERA PC BOARD(TS-479-100)

29 EZ1-492-214-11 SENSOR LASER (ZX2-LD50 0.5M)

30 EZ1-969-127-12 HARNESS (YM YE ETC-YM1 YS ETC)

31 EZ1-969-129-16 HARNESS (HEAD ETC-H1M H1E ETC)

32 EZ1-492-235-25 MOTOR ASSY (Z)

33 EZ1-492-200-21 FAN ASSY (Y)

34 EZ1-969-131-13 HARNESS (HIO2-HIO3 ZBRK ETC)

35 EZ1-492-147-11 AMPLIFIER SERVO

36 EZ1-969-130-12 HARNESS (HIO-HIO1 HFAN1 HFAN2)

37 EZ1-969-126-22 HARNESS (CAM1P-CAM1C)

38 EZ1-969-126-12 HARNESS (CAM1P-CAM1C)

39 EZ1-458-773-11 USB EXTENSION (USB-EX50) USB EXTENSION (USB-EX50) 1

40 EZ1-969-135-22 HARNESS (BCSEN-AMP)

41 EZ1-969-135-12 HARNESS (BCSEN-AMP)

42 EZ1-969-505-12 HARNESS (BACKUP MONITORING)

43 EZ1-895-367-12 BOARD BACKUP MONITORING

44 401-58057 HARNESS(BAT-BACKUP MONITOR 2)

45 EZ1-492-202-12 BATTERY ASSY

46 EZ1-969-293-14 HARNESS (HEAD LED)

47 EZ1-969-292-14 HARNESS (PART CAMERA)

48 EZ1-969-292-24 HARNESS (HEIGHT CAMERA)

49 EZ1-845-163-12 UNIT CAMERA MOVE (QQJ-2216)

50 EZ1-458-773-11 USB EXTENSION (USB-EX50) USB EXTENSION (USB-EX50) 1

51 EZ1-845-154-11 MEMORY USB USB

52 EZ1-492-164-15 MOTOR ASSY

53 EZ1-492-164-25 MOTOR ASSY

54 EZ1-492-547-14 MOTOR ASSY (H)

55 EZ1-492-167-11 MOTOR ASSY (VALVE)

56 EZ1-492-168-11 SENSOR ASSY (VALVE)

57 EZ1-492-165-13 SENSOR ASSY (NOZZLE SHAFT)

58 EZ1-492-166-12 SOLENOID VALVE ASSY (BLW)

59 401-56566 HARNESS(BACKUP MONITORING)

60 EZ1-895-367-12 BOARD BACKUP MONITORING

61 401-58057 HARNESS(BAT-BACKUP MONITOR 2)
