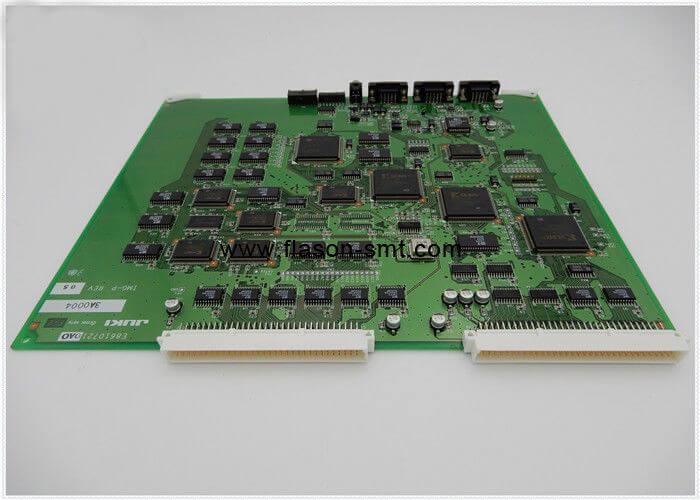

JUKI 730 740 750 760 1700 1710 IMG-P IMAGE BOARD E86107210A0

JUKI 730 740 750 760 1700 1710 IMG-P IMAGE BOARD E86107210A0

Specifications:

1 BASE FRAME COMPONENTS(1)

REF.NO NOTE PART NO D E S C R I P T I O N

1 EA-9500B01-00 CABLE BAND

2 EA-9500B02-00 CABLE BAND 150

3 HX-0006500-0B CABLE BAND

4 HX-0006500-0C CABLE BAND

5 SL-6040892-TN SCREW M4 L=8

6 E1035-729-000 ADJUSTER FOOT

7 400-00519 BASEFRAME NUT

8 E1044-729-000-A ADJUSTER NUT 36

9 400-00403 ADJUST BOLT

10 SM-6126002-TN SCREW M12 L=60

11 WS-1220002-KN SPRING WASHER

12 WP-1302501-SC WASHER 13X24X2.5

13 SM-6083002-TN SCREW M8 L=30

14 NM-6080002-SC NUT M8X1.25 TYPE2

15 #02 400-13307 FP PUSHER

16 #02 NM-6080001-SC NUT M8X1.25 TYPE1

17 401-36012 SEALING_PACKING

18 401-47543 ADJUST_PLATE

19 SL-6062092-TN SCREW M6 L=20

20 #01 400-00535 BASEFRAME NUT(EN)

21 401-83260 Y_SUPPORT_L

22 401-47580 HOLE_COVER_L_ASSY

23 400-94739 HOLE_COVER_COPLA

24 SL-6061292-TN SCREW M6 L=12

25 401-47555 EXT_FRAME_HOLE_COVER

26 SL-6041092-TN SCREW M4 L=10

27 SL-6082592-TN SCREW M8 L=25

28 401-83258 Y_SUPPORT_R

29 401-08337 FAN BR

30 401-89090 DC FAN ASM

31 SL-4033591-SC SCREW M3 L=35

32 WP-0320501-SC WASHER M3

33 NM-6030001-SC NUT M3X0.5 TYPE1

34 SL-3061232-TN SCREW M6 L=12

35 401-83543 SMEMA_BR_ASM_RS
