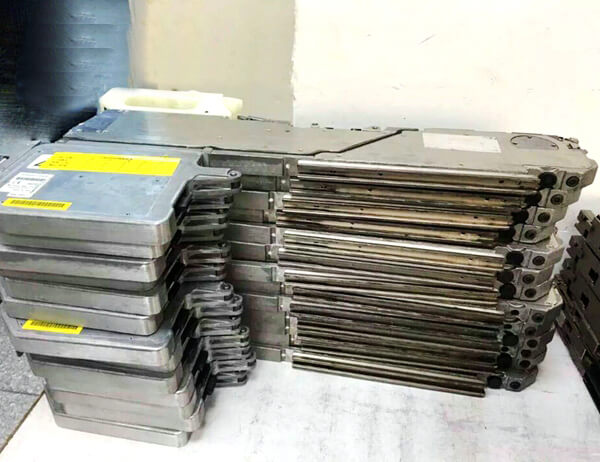

Hitachi GXH 8-56mm Feeder

Hitachi GXH 8-56mm Feeder

  • SMT Spare Parts
  • I-Pulse feeder
  • Hitachi GXH 8-56mm Feeder
  • USAGE:I-Pulse pick and place machine
  • Product description: Hitachi GXH 8-56mm Feeder

Hitachi GXH 8-56mm Feeder

Product Specifications:

We can supply all Hitachi  SMT Feeder feeders, new, compatible original and used are all availble.
4MM GT-24040/GT-34040
8MM GT-08080/GT-08081/GT-08082/GT-08083
8MM GT-18080B/GT-18081B/GT-18082B/GT-18083B
8MM GT-18080C/GT-18081C/GT-18082C
8MM GT-28080/GT-28081/GT-28082
8MM GT-38080/GT-38081/GT-38082
12/16MM GT-12160/GT-12161/GT-12162
24/32MM GT-24320/GT-24321/GT-24322
44/56MM GT-44560/GT-44561/GT-44562
72MM GT-72000/GT-72001/GT-72002
88MM GT-88000/GT-88001/GT-88002
8MM GD-08080/GD-08081/GD-08082
8MM GD-18080B/GD-18081B/GD-18082B
8MM GD-18080C/GD-18081C/GD-18082C/GD-18083C
8MM GD-28080/GD-28081/GD-28082/GD-28083
8MM GD38080/GD38081/GD38082
12/16MM GD-12160/GD-12161/GD-12162
24/32MM GD-24320/GD-24321/GD-24322
44/56MM GD-44560/GD-44561/GD-44562
72MM GT-72000/GT-72001/GT-72002
88MM GT-88000/GT-88001/GT-88002
8MM SL-48085/SL-48086/SL-48087/SL-48088

Hitachi feeder GT38080B original new for placement machine
SMT FEEDER Hitachi GXH 8-56mm feeder

The new and innovative SL (Super Loading) Feeder which has been developed for use with Hitachi's Surface Mount Systems and designed to significantly improve customers operational efficiency and pick & placement quality with stable component loading.

Traditionally, operators have been required to connect or ‘splice' a secondary reel of components to an existing component supply just before the final components are processed to maintain continuous operation and avoid machine stoppage. Hitachi's newly developed SL Feeder is an automatic, self-loading feeder that allows the addition of a secondary reel supply in the same feeder any time during operation, thus reducing operator labor, while improving line efficiency. Furthermore, the SL Feeder design removes the necessity of splicing materials needed by a conventional feeder which will enable increased productivity and reduces materials costs by no longer having to purchase splicing materials. This splice-free, continuous operation will also resolve an issue that has plagued electronics assembly customers for years, ‘unskilled operators'. SMT line operation will no longer be affected by an operator's inadequate splicing skills. Any operator can quickly and efficiently resupply feeders, avoiding machine stoppages any-time during machine operation.

When using Hitachi's SL feeder, cover tape will be disposed of with the carrier tape by the SL feeders' newly implemented cover-tape processing method. Since the cover-tape stays attached to the carrier-tape at all times, there is the added benefit of a dramatic reduction of dust particulates and/or paper fibers generated through the use of a conventional feeder and improved component feeding accuracy and stability while reducing machine maintenance. Through the use of Hitachi's SL Feeder, equipment operation will be more efficient and contribute to improved utilization and component placement quality.

The SL Feeder is developed and manufactured by Hitachi,Compatible with Hitachi's Sigma series high speed modular mounters and backwards compatible with the previous generation GXH series mounters, The SL Feeder mainly used for electronics assembly customers such as smart phone/ tablet PC manufacturers as well as electronics manufacturing service (EMS) companies.

Feeder performance will degrade without proper maintenance. Regular cleaning, lubrication,and calibration are essential. Feeder neglect will lead to:
1. Mispicking of parts
2. Misplacement of parts
3. Flipped parts
Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.

FLASON SMT deals in the following products:

1. SMT equipment and accessories: nozzles, feeder, feeder parts, cutter, filter, guide, tape, mortor, belt, cylinder, smt grease/lubricant, sensor etc.
2. Nozzles & feeders for fuji, for Juki, for yamaha, for samsung, for siemens, CM602, CM402...have large stock.
3. Nozzle cleaning machine, solder paste mixer, SMD component counter
Our advantage
A. Own a team with engineers who have more than 10 years experience in SMT service.
B. Various brands available
C. Offer customized service
D. Large stock- more than 10000 models of smt parts


I-Pulse Feeder, I-Pulse 12MM Feeder, I-Pulse 16MM Feeder, chip mounter Feeder, I-Pulse 32MM Feeder, I-Pulse 8MM Feeder, I-Pulse 44MM Feeder, I-Pulse 52MM Feeder, I-Pulse Stick Feeder, SMT Feeder, I-Pulse Pick and place Machine Feeder.

We provide full SMT assembly line solutions, including SMT Feeder, SMT Nozzle, SMT Control Card, SMT Motor, SMT Laser | Sensor, SMT Feeder Storage Cart, SMT Servo driver, SMT Solenoid Valve, SMT Filter, SMT Feeder parts, Chip mounter Parts, SMT Equipment, SMT Spare parts, SMT Siplace parts, any kind through hole Insertion equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
