Process time: Generally 120 min or User's spec
Operating temp: 60oC ~ 200oC
Maximum temp: 220oC
Operating pressure: 1 bar - 10 bar
Heller 860 Pressure Curing Oven PCO
Specifications:

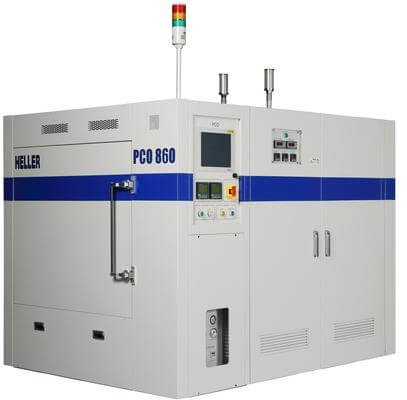

Heller 860 Pressure Curing Oven PCO
A Pressure Cure Oven (PCO), or Autoclave, is used to minimize voiding and increase adhesion strength for bonding processes typically used in die attach and underfill applications.
PCO pressurizes air into a rigid vessel and heats & cools with forced convection.
Heaters, heat exchangers and blowers are internal to the pressure vessel.
When the curing process is complete, the pressure oven automatically relieves its pressure to 1atm and cools.
Process Specification:
Process time: Generally 120 min or User's spec
Operating temp: 60oC ~ 200oC
Maximum temp: 220oC
Operating pressure: 1 bar - 10 bar
Capacity: 24 Magazines (typical)
Cooling method: PCW (17oC - 23oC)
Cooling water pressure: 25 - 40 psi
Pressure Cure Applications:
Composite Forming for the printing industry
Die Attach Curing
Wafer Laminating
Thermal Compress Bonding
Underfill Curing
Via Filling
Film & Tape Bonding
