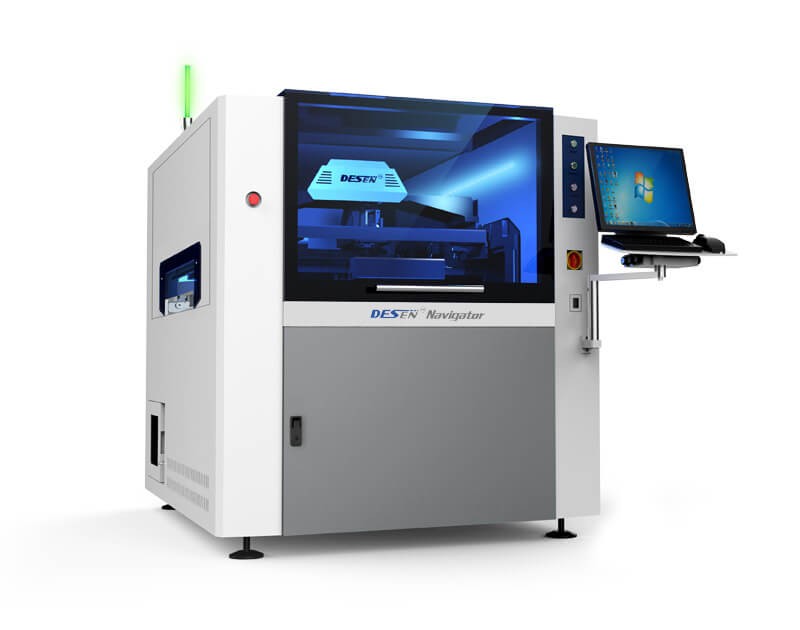

Classic Navigator SMT Stencil Printer

Classic Navigator SMT Stencil Printer

  • Max PCB:510*510mm
  • PCB weight ≤3kg
  • 1320mm(L)*1690mm(W)*1510mm(H)
  • Weight:1000Kg
  • Product description: Classic Navigator SMT Stencil Printer Fully Automatic, Max PCB:510*510mm, PCB weight ≤3kg, size:1320mm*1690mm*1510mm(H), Weight:1000Kg
  • INQUIRY

Classic Navigator SMT Stencil Printer

Products description


Classic Navigator SMT Stencil Printer

Automatic visible screen printer Navigator

A pioneer in printing industry

Product features

The whole machine is fully controlled by servo system

Automatic pressure feedback system

Multifunctional image processing system

High precision UVW closed loop platform

Intelligent PCB holding device

Automatic steel mesh positioning module

Excellent expansibility

User-friendly operation interface

Specification :
High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~510mm x 510mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.
1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Precision

printing precision

≥2 Cpk@±25μm@,6σ

Repeat printing

≥2 Cpk@±10μm@,6σ

Cycling time

7s

Screen frame

screen frame dimension

470*370mm-900*900mm

Screen frame fixation

air cylinder

Screen frame adjustment

automatic

Platform

platform adjustment range

X:±4mm Y:±6mm

Platform adjustment angle

Z:±2°
PCB

PCB printing size

Min50*50mm Max510*510mm

PCB thickness

0.4mm-5mm

PCB weight

≤3kg

PCB warping

maximum warping 7mm (including base plate )

Transmission

transmission direction

L→R,L→L,R→L,R→R

Transmission speed

100-1500mm/s programmable adjustment

Transmission width

50-340mm

Demould

Demould method

First use scraper, then demould, demould then use scraper, maintain pre-pressure for demould (surface demould, line demould)

Demould speed

0.1-20mm/s

Speed distance

0mm-3mm

Work condition

voltage

220V,±10%,single phase 50/60Hz

Power

3kw

Air pressure

0.45-0.6MPa

Gas consumption

0.5ml/s

Safety performance

insulation resistance

1KV/3MΩ

Ground resistance

≤0.1Ω

Operation noise

≤87dB

External dimension

1320mm(L)*1690mm(W)*1510mm(H)
